Typ VA Series 36 3680NX
Machine taps typ VA for steel up to 1000N/mm2 [For through holes]

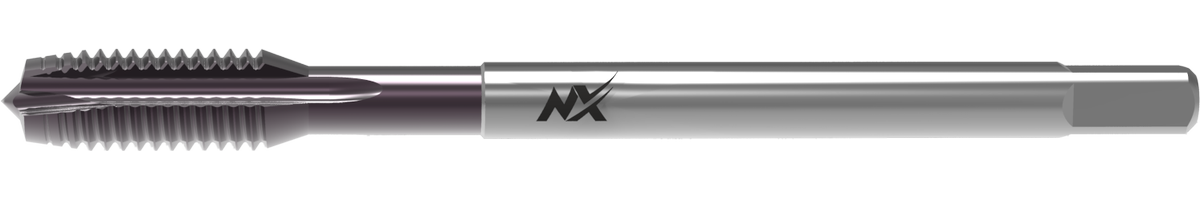

High performance machine tap with straight flutes and spiral point, metric, DIN 376, TiCN coated, suitable for structural steels, cast steels, case hardened and nitriding steels, high alloyed steels, tool steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.
Product variants
| ID | D1 | P | Tolerance | L1 | L2 | D2 | a |
|---|---|---|---|---|---|---|---|
| 042038262120000 | M12 | 1,75 | 6H | 110 | 28 | 9 | 7 |
| 042038262160000 | M16 | 2 | 6H | 110 | 32 | 12 | 9 |
| 042038262200000 | M20 | 2,5 | 6H | 140 | 34 | 16 | 12 |
| 042038262220000 | M22 | 2,5 | 6H | 140 | 34 | 18 | 14.5 |
| 042038262240000 | M24 | 3 | 6H | 160 | 38 | 18 | 14.5 |
| 042038262270000 | M27 | 3 | 6H | 160 | 38 | 20 | 16 |
| 042038262300000 | M30 | 3,5 | 6H | 180 | 45 | 22 | 18 |
| 042038262330000 | M33 | 3,5 | 6H | 180 | 50 | 25 | 20 |
| 042038262360000 | M36 | 4 | 6H | 200 | 56 | 28 | 22 |
Use
| MACHINED MATERIAL | HOLE TYPE | CUTTING SPEED | LUBRICATION | USE |
|---|---|---|---|---|
| Aluminium alloys si content < 10% | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Aluminium alloys si content < 10% | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Aluminium alloys si content > 10% | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Aluminium alloys si content > 10% | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Case hardened steels and nitriding steels up to 1100 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Case hardened steels and nitriding steels up to 1100 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Copper alloys (long chipping) | Through hole (thread length L < 1,5xd1) | 10-12 | Cutting Oil/Emulsion | Possible use |
| Copper alloys (long chipping) | Through hole (thread length L > 1,5xd1) | 10-12 | Cutting Oil/Emulsion | Possible use |
| Copper alloys (short chipping) | Through hole (thread length L < 1,5xd1) | 10-12 | Cutting Oil/Emulsion | Recommended use |
| Copper alloys (short chipping) | Through hole (thread length L > 1,5xd1) | 10-12 | Cutting Oil/Emulsion | Recommended use |
| Free cutting steels up to 800 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Free cutting steels up to 800 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Heat-treated steels up to 1100 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Heat-treated steels up to 1100 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Plain cast steels up to 800 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Plain cast steels up to 800 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Spheroidal graphite cast iron and malleable cast iron | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Spheroidal graphite cast iron and malleable cast iron | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Stainless steels and heat resisting steels with strength 450 - 800 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Stainless steels and heat resisting steels with strength 450 - 800 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Stainless steels and heat resisting steels with strength 600 - 1000 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Stainless steels and heat resisting steels with strength 600 - 1000 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Structural steels and heat-treated steels up to 800 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Structural steels and heat-treated steels up to 800 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Possible use |
| Tool steels up to 1100 N/mm2 | Through hole (thread length L < 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Tool steels up to 1100 N/mm2 | Through hole (thread length L > 1,5xd1) | 15-20 | Cutting Oil/Emulsion | Recommended use |
| Unalloyed aluminium | Through hole (thread length L < 1,5xd1) | 15-35 | Cutting Oil/Emulsion | Possible use |
| Unalloyed aluminium | Through hole (thread length L > 1,5xd1) | 15-35 | Cutting Oil/Emulsion | Possible use |
| Unalloyed copper | Through hole (thread length L > 1,5xd1) | 20-25 | Cutting Oil/Emulsion | Possible use |
| Unalloyed copper | Through hole (thread length L < 1,5xd1) | 20-25 | Cutting Oil/Emulsion | Possible use |
| Zinc and zinc alloys | Through hole (thread length L > 1,5xd1) | 10-12 | Cutting Oil/Emulsion | Possible use |
| Zinc and zinc alloys | Through hole (thread length L < 1,5xd1) | 10-12 | Cutting Oil/Emulsion | Possible use |
